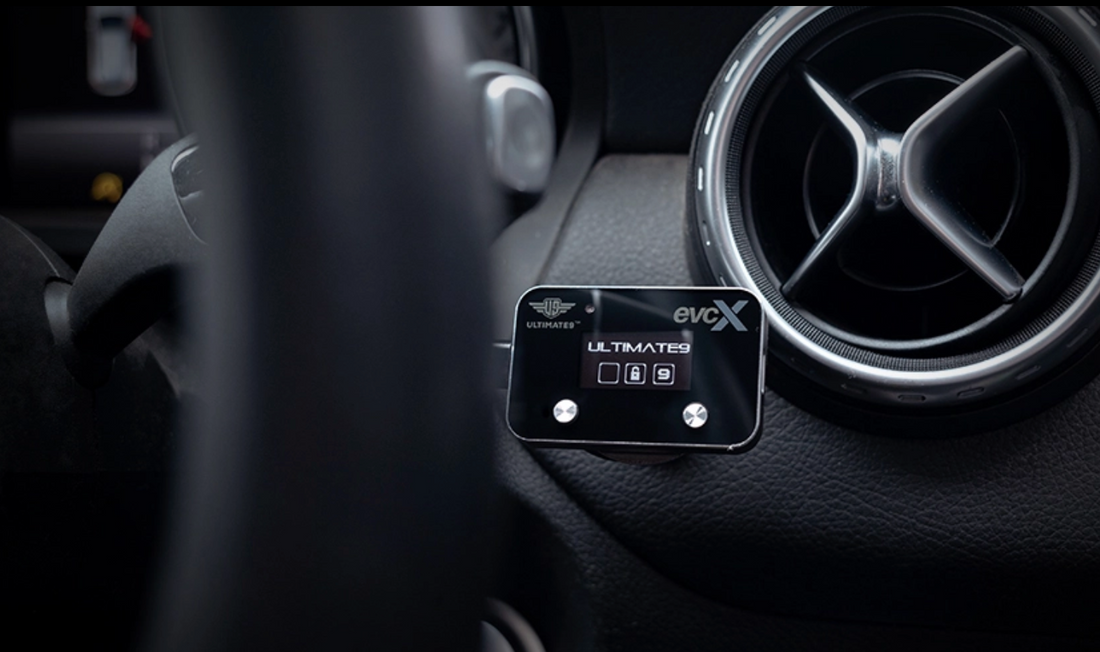

Ultimate 9 - Do you feel the lag?

If you have ever pressed the accelerator in your Toyota and felt a frustrating split-second delay before anything happened — you have experienced throttle lag, and you are not imagining it. It is a deliberate factory characteristic of every modern drive-by-wire Toyota, and the Ultimate 9 throttle controller is the most effective fix available.

This guide covers everything you need to know: what throttle lag is, why it matters, which Ultimate 9 model is right for your vehicle, and a complete step-by-step installation walkthrough. Whether you drive a Land Cruiser 200 Series, Prado 150, HiLux, or any other modern Toyota, this upgrade takes around 15 minutes and requires zero tools.

What Is Throttle Lag — and Why Does It Matter?

Every Toyota built from around 2003 onwards uses an Electronic Throttle Control (ETC) system — commonly called drive-by-wire. Instead of a mechanical cable connecting your accelerator pedal to the engine's throttle body, there is an electronic signal chain:

• You press the accelerator pedal
• A Throttle Position Sensor (TPS) converts that movement into an electronic signal
• The Engine Control Unit (ECU) receives and processes the signal
• The ECU commands an electric motor to open the throttle body

That chain introduces a deliberate delay — typically 300-500 milliseconds between your foot moving and the engine responding. Toyota does this intentionally for emissions compliance, fuel economy, and smooth on-road manners. The result is a dampened, sluggish pedal feel that is acceptable on a freeway but genuinely problematic in the situations Toyota owners most care about.

Where Throttle Lag Causes Real Problems

• Rock crawling — precise throttle feathering is near impossible with a sluggish pedal
• Sand and beach driving — maintaining momentum requires instant, predictable response
• Hill starts off-road — delayed power on loose surfaces causes wheel spin or stalling
• Towing — merging onto highways with a heavy load demands confident, immediate acceleration
• Overtaking — throttle hesitation when passing is a genuine road safety concern
• Low-speed 4WD tracks — constant momentum management through mud and ruts

This is not a fault — it is an intentional factory calibration. But it is one that can be corrected, and the Ultimate 9 throttle controller is the cleanest way to do it.

What Is the Ultimate 9 Throttle Controller?

The Ultimate 9 throttle controller is a small electronic module that installs inline between your accelerator pedal sensor and the ECU. It intercepts the TPS signal, applies a configurable sharpening algorithm, and sends a crisper, faster-rising signal to the ECU — so the throttle body opens sooner and with more precision.

Why Ultimate 9?

Ultimate 9 is an Australian brand purpose-built for the serious 4WD market. Their products have earned a strong reputation across the Toyota Land Cruiser, Prado, and HiLux community for reliability, quality engineering, and genuine real-world performance improvement.

• Designed and engineered in Australia for Australian conditions
• Vehicle-specific wiring harness — true plug-and-play, no modification required
• Fully reversible — remove the unit and the vehicle returns to exactly factory settings
• Auto power-off with ignition — zero battery drain
• Complies with Australian Design Rules
• Compact, discreet module mounts cleanly in the cabin

EVC vs EVCX — Which Model Do You Need?

Ultimate 9 produces two throttle controller lines. Both solve the same fundamental problem — throttle lag — but they differ in features, display, and level of control.

	Ultimate 9 EVC	Ultimate 9 EVCX
Display	Compact LED display	Large colour screen
Drive Modes	ECO / Normal / Sport / Sport+	ECO / Normal / Sport / Sport+ / Custom
Sensitivity Levels	10 levels per mode	10 levels per mode
Interface	3-button control	Refined button layout, premium finish
Installation	Plug-and-play	Plug-and-play
Best For	Effective upgrade at great value	Premium experience, more customisation
Shop	View EVC Range	View EVCX Range

Our recommendation: If you want a proven, no-fuss upgrade at excellent value — go the EVC. If you want the full premium experience with a larger display and more options — go the EVCX. Either way, you will notice the difference from the first drive.

Vehicle Compatibility

The Ultimate 9 throttle controller range covers the full breadth of modern Toyota drive-by-wire vehicles. Each unit is supplied with a vehicle-specific wiring harness matched to your exact make, model, and year — no adaptors, no cutting, no guesswork.

Ultimate 9 throttle controller vehicle compatibility table

Vehicle	Series / model	Years	Notes
Toyota LandCruiser 70 Series	VDJ76 / VDJ78 / VDJ79	2007 – present	V8 diesel & GR Sport — drive-by-wire variants only
Toyota LandCruiser 200 Series	UZJ200 / URJ200 / GXL / Sahara	2007 – 2021	All petrol & diesel variants
Toyota LandCruiser 300 Series	VJA300 / F33A-FTV	2021 – present	Twin-turbo diesel & V6 petrol
Toyota Prado 120 Series	J120	2002 – 2009	All engines
Toyota Prado 150 Series	J150 — incl. GDJ150	2009 – present	All engines incl. GD diesel
Toyota HiLux N70	TGN / KUN / GGN	2005 – 2015	Petrol & diesel
Toyota HiLux N80	Rogue / SR5+ / WorkMate	2015 – present	All variants



Not sure if your exact vehicle and year is supported? Contact us and we will confirm the right unit and harness before you order.

What's in the Box

Your Ultimate 9 kit arrives ready for installation. Everything you need is included — no additional purchases required.

• 1 — Ultimate 9 EVC or EVCX control module
• 1 — Vehicle-specific wiring harness (matched to your Toyota)
• 1 — Adhesive mounting pad
• 1 — Extension cable (included with select variants)
• 1 — Quick-start instruction card

Step-by-Step Installation Guide

Step 1 — Locate the Accelerator Pedal Sensor Connector

Slide the driver's seat back for comfortable access to the pedal area. Follow the accelerator pedal arm upward toward the firewall — you will find a plastic wiring connector at the top of the pedal assembly. This is the Throttle Position Sensor (TPS) connector.

On most Toyota Land Cruiser, Prado, and HiLux models it sits at the top of the pedal arm, close to the firewall. It is typically a 6-8 pin rectangular connector with a plastic locking clip.

Step 2 — Disconnect the Factory TPS Connector

Press the locking tab on the connector and pull the two halves apart firmly — grip the connector bodies, not the wires. You will have two separate ends: the harness side (from the vehicle's wiring loom) and the sensor side (attached to the pedal).

Step 3 — Connect the Ultimate 9 Wiring Harness

The Ultimate 9 harness is a pass-through connector that slots between the two factory ends:

1. Connect the Ultimate 9 harness female end to the factory sensor side (pedal connector) — it will click firmly into place.
2. Connect the Ultimate 9 harness male end to the factory harness side (ECU loom connector) — again, a firm click indicates a secure seat.
3. Verify both locking tabs are fully engaged.

Step 4 — Mount the Control Module

Route the harness cable up and across to your chosen mounting position for the control module. Good locations include:

• Lower dashboard face near the steering column
• Side of the centre console within easy reach while driving
• Dash trim panel to the left or right of the steering wheel

Attach the module using the supplied adhesive pad. Position the face (with buttons) where it is clearly visible and accessible. Route the cable away from the accelerator pedal travel path and secure any excess with cable ties.

Step 5 — Verify Before Starting

Before turning the key, confirm:

1. Both harness connectors are fully clicked and locked
2. The control module cable is not kinked or under tension
3. No wiring is near the accelerator pedal's range of movement
4. The module is securely mounted and will not shift while driving

Step 6 — Start the Engine and Test

Turn the ignition on — the Ultimate 9 module powers on automatically and displays the current mode. Start the engine, confirm the accelerator responds normally in the default mode, then take the vehicle for a brief test in a safe open area before heading out on roads or tracks.

Total installation time: approximately 10-15 minutes.

How to Use Your Ultimate 9 Throttle Controller

The module is operated via the buttons on its face and can be adjusted on the fly while driving — useful when conditions change between bitumen, dirt, and technical terrain.

Controls

• Mode button — cycles through available drive modes
• Up (+) — increases sensitivity level within the current mode
• Down (-) — decreases sensitivity level within the current mode

The module automatically powers off when the ignition is switched off and returns to your last selected setting at the next start.

Drive Modes Explained

Mode	Sensitivity	Best Used For
ECO	Reduced (1-10)	Highway cruising, fuel-conscious driving, reducing throttle spikes
Normal	Factory equivalent (1-10)	Everyday driving, factory baseline — useful reference point
Sport	Increased (1-10)	General performance driving, towing, overtaking
Sport+	Maximum (1-10)	Off-road, sand, rock crawling — maximum immediate response
Custom (EVCX)	User-saved (1-10)	Personal preference saved across ignition cycles

Recommended Settings by Situation

• Highway / long distance: Normal or ECO, level 3-5
• City / urban: Normal, level 4-6
• Towing a camper or trailer: Sport, level 4-6
• Gravel & dirt roads: Sport, level 5-7
• Sand & beach driving: Sport+, level 6-8
• Rock crawling / technical terrain: Sport+, level 4-6 (precise, controlled response)
• Overtaking on open roads: Sport or Sport+, level 6-8

Removing the Controller (Fully Reversible)

If you ever need to revert to factory — for servicing, resale, or any other reason:

1. Turn ignition OFF
2. Disconnect both ends of the Ultimate 9 harness
3. Reconnect the original factory TPS connector

The vehicle immediately returns to exactly its original factory throttle behaviour. No ECU re-learning required, no diagnostic codes, no trace left in the vehicle's electronics.

Frequently Asked Questions

What does a throttle controller actually do?

A throttle controller plugs in between your accelerator pedal sensor and the ECU, intercepting and sharpening the signal so the engine responds faster to your inputs. It eliminates the built-in electronic delay (throttle lag) that Toyota deliberately introduces in its drive-by-wire system for emissions and economy reasons. The result is more immediate, predictable throttle response across all driving conditions.

Will it void my Toyota warranty?

Under Australian Consumer Law, a dealer cannot void your warranty simply because an aftermarket accessory has been fitted — they must demonstrate the device directly caused a fault. The Ultimate 9 is a non-invasive, plug-and-play device with no permanent modification to your wiring or ECU. It can be removed in under five minutes, leaving the vehicle completely stock. If warranty is a concern, the unit can be removed before any dealer service.

Does it affect fuel economy?

In ECO mode, fuel consumption can be marginally reduced by smoothing out aggressive throttle inputs. In Sport or Sport+ mode, fuel use depends entirely on how you drive — the unit makes power more accessible, but if you exercise restraint the consumption impact is negligible. The device itself draws no meaningful current from the battery.

Is it compatible with cruise control, traction control, and VSC?

Yes — the Ultimate 9 works transparently with all factory driver assistance systems including cruise control, active traction control, VSC (Vehicle Stability Control), DAC (Downhill Assist Control), and engine braking. None of these systems are affected.

Can I damage my engine by using it?

No. The throttle controller does not increase maximum throttle beyond 100% — it simply reaches full throttle faster when you ask for it. Your engine and drivetrain experience identical maximum loads to stock. There is no added mechanical stress from using a throttle controller.

My vehicle already has a performance tune — can I still use it?

Absolutely. A performance tune modifies the engine's fuelling and power maps. A throttle controller modifies the signal response time between your foot and the ECU. They operate on different parts of the system and work together without conflict — many tuned vehicles run a throttle controller alongside for the best of both worlds.

How is the EVCX different from the EVC?

Both units solve the same problem — throttle lag — with the same plug-and-play installation. The EVCX is the premium model, featuring a larger, higher-resolution colour display, a more refined button interface, and an additional Custom mode for saving personalised settings that persist across ignition cycles. If you want the cleanest look and maximum flexibility, go EVCX. If you want proven performance at a sharper price, the EVC delivers exactly the same core benefit.

What if my exact vehicle isn't listed?

Ultimate 9 covers a wide range of Toyota models beyond the list above. Email us at support@thecruiserstore.com.au with your make, model, year, and engine and we will confirm whether a compatible unit is available before you order.
