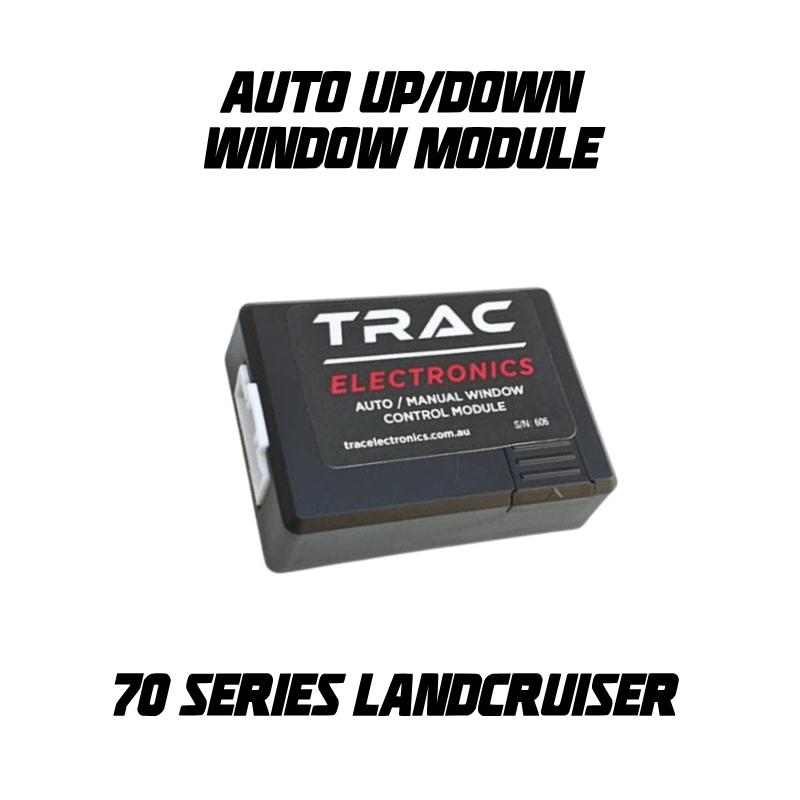

Auto Up/Down Window Module - Suitable for 70 Series Window Switches
Auto Up/Down Window Module - Suitable for 70 Series Window Switches
Couldn't load pickup availability
Models for the front and rear passengers switches available

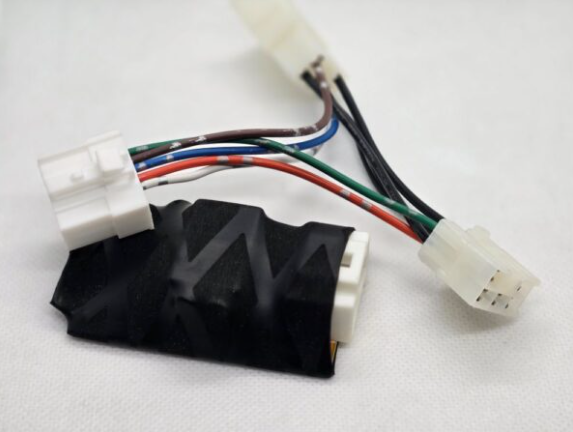

NOTE: Due to space limitations in the rear passengers armrest, the module is contained within heat shrink allowing it to fit within the armrest.
Module Function:
Transforms a single passengers window switch to full one touch auto up/down operation and the corresponding switch on the drivers master window switch.
The patch harness is fully 100% direct plug & play connecting to the factory window switch connector, so no splicing or connecting to any individual wires is required.

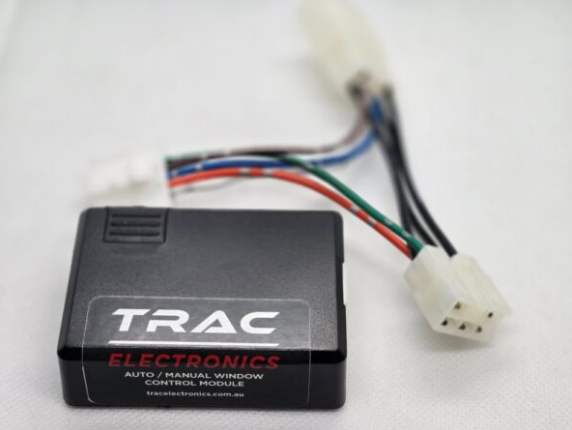

System includes:

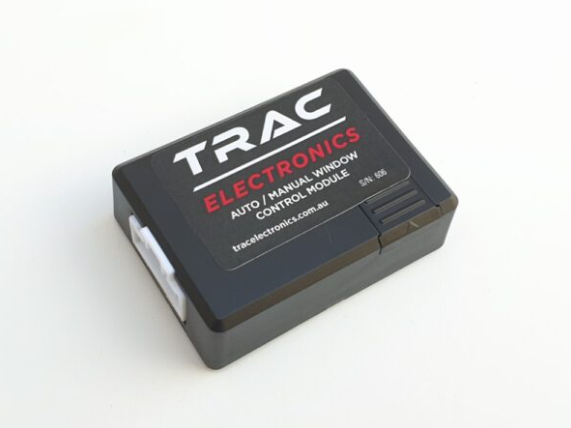

Module – Auto up/down one touch window control module
Patch harness with full 100% direct plug & play connectors (no splicing wires required)
Adhesive pad (hook & loop) to attach module to inside trim
Installation instructions (via a QR code on packaging).
IMPORTANT NOTE: Our system uses current sensing to operate the window regulator, it does not use anti pinch so if an object is encountered between the window and door frame the window will stop. Once the obstruction has been removed the window switch can be reused to continue window movement.
The window lock switch on the master window switch can still be used to isolate the passengers windows from operating.
If your windows are not functioning properly (very slow at opening or closing) our system will not be suitable as it will detect over current due to the window regulator working harder than it should stopping the window movement.
Operating features:
Hold window switch up or down for manual control
Window switch functions normally – window stops when the switch is released.
Tap the window switch once to initiate full auto window operation
Window will automatically close / open without the need to keep holding the window switch.
When window is opening or closing tap the switch again to pause window.
Installation:
The door trim is not required to be removed.
Remove switch fascia using a trim removal tool
Disconnect existing factory window switch connector
Fit supplied plug and play Y patch harness to the corresponding connectors
mount controller
Refit switch fascia.
Also suitable for:
Toyota Landcruiser 80 Series 1990-1998
Toyota 4 Runner 1998-2004
Toyota Camry 1993-1996 DV10
Toyota Landcruiser Prado 95 Series 1996-2002
Toyota HiAce H100 Series 1995-2004.
And models using OEM Switch Number: 84810-32070, 8481032070

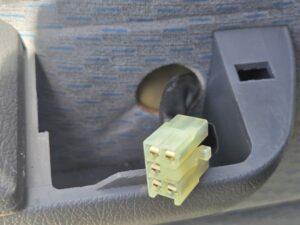

Your window switch and factory switch connector must look like the below images:
