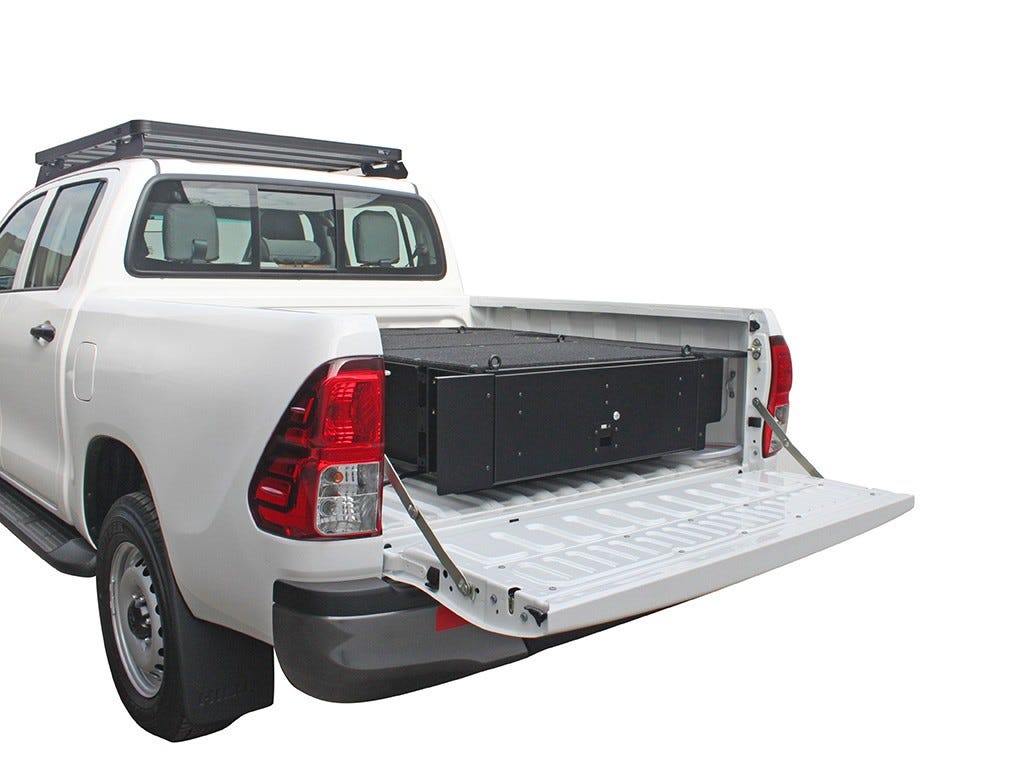

Toyota Hilux N80 (Revo) DC (2016-Current) Touring Drawer Kit

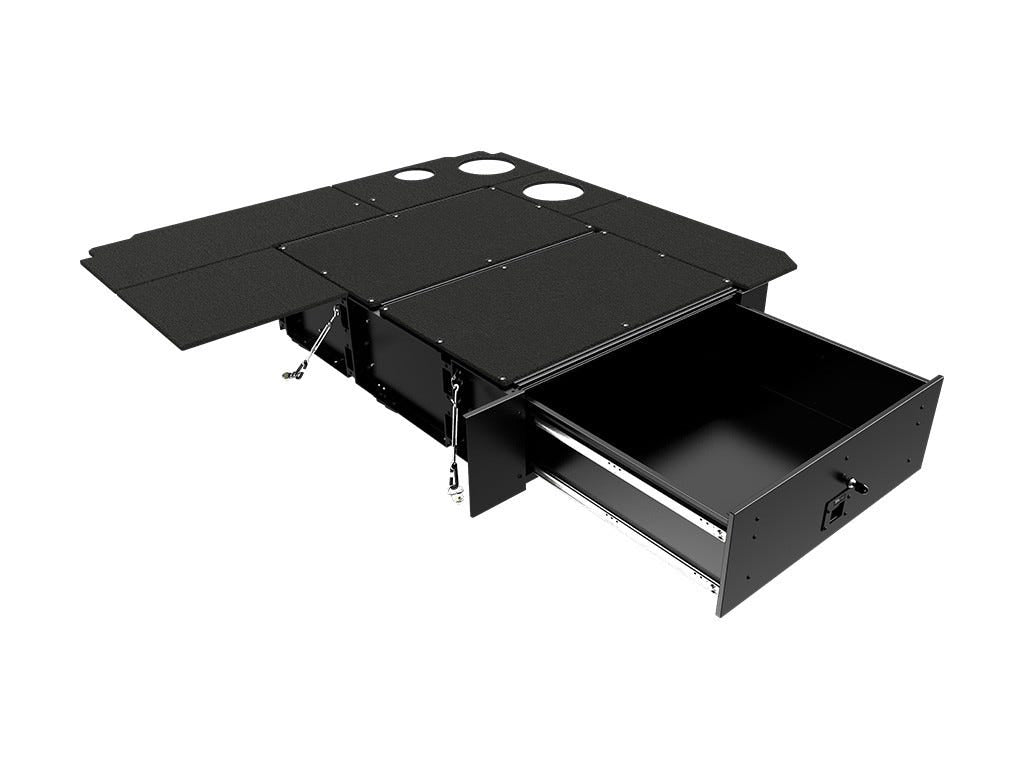

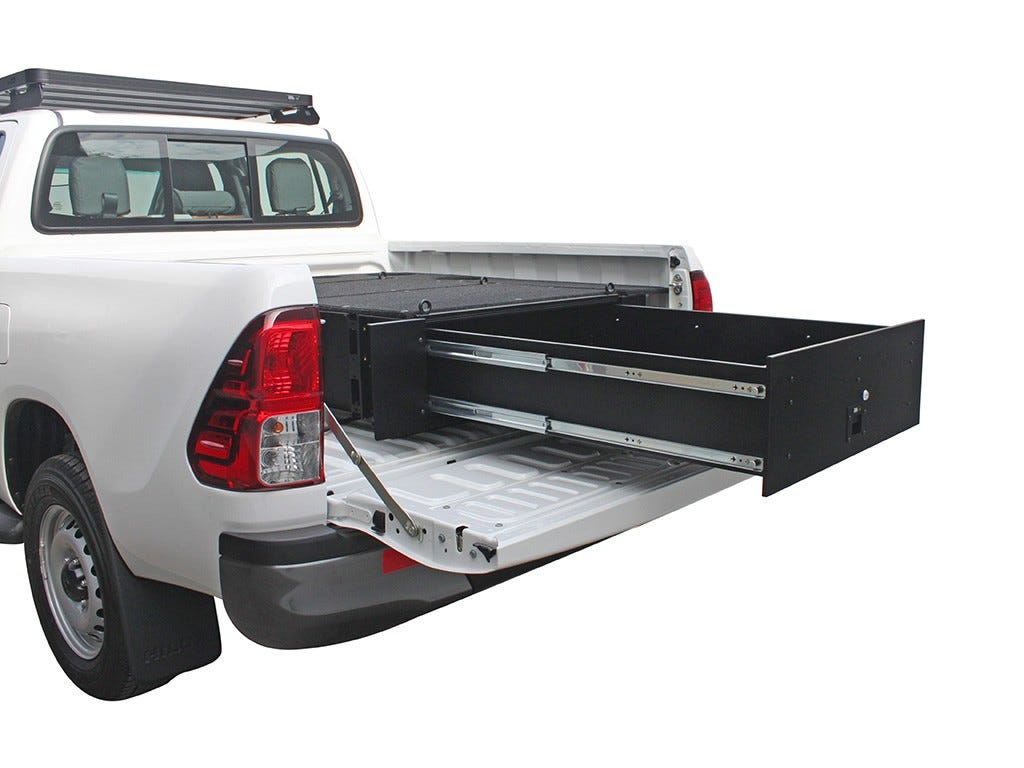

This drawer kit has 1 lockable drawer, 2 keys per lock, 3 tie down rails, 6 tie down rings, deck completion set, face completion set, brackets, all necessary installation hardware, and detailed fitment instructions. 180kg / 397lb drawer load carrying capacity. Hold open feature: drawer “locks” open while parked on uneven surfaces. High-strength bearing slides allow the drawer to extend nearly 100% from the anchored base. Provide peace of mind and security by locking away important travel items such as computers, smart phones and camera gear. The flat deck incorporates three cargo attachment channels and 6 SSCA047. Customize your own storage configurations. Stack and secure luggage, SBOX031, SBOX001, aluminium boxes and other storage containers to the top deck using STRA034 or other straps. The deck above the drawers can also be used to mount Front Runner Cargo/Fridge Slides.

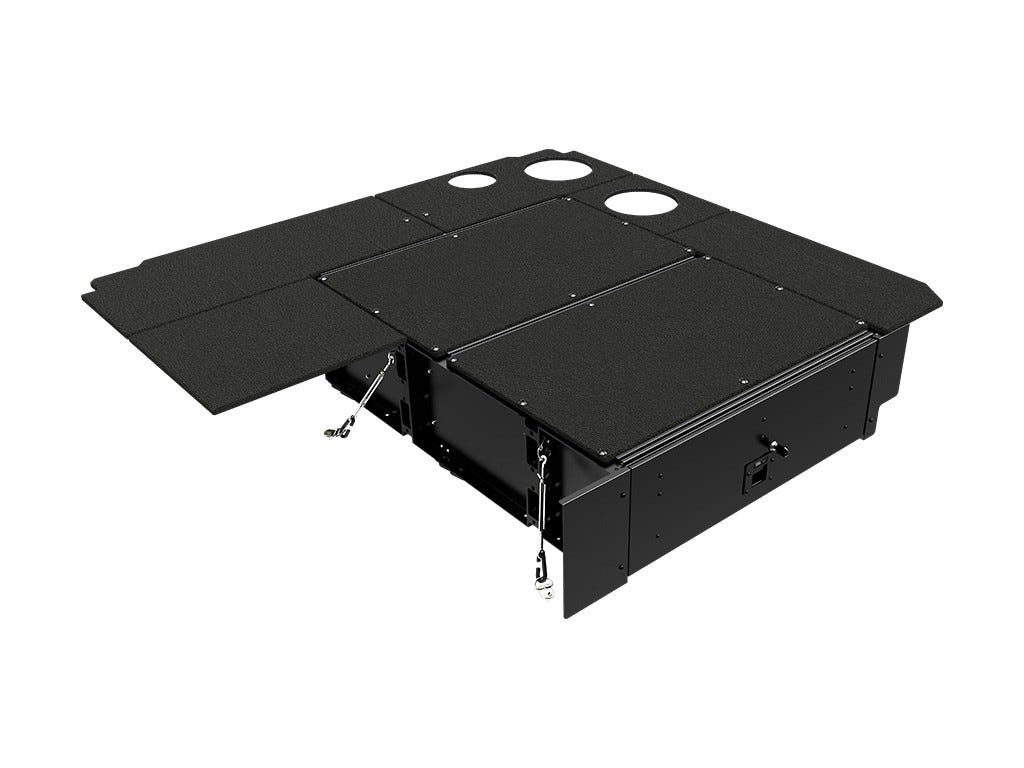

A fridge (footprint of 750mm x 425mm or smaller) can be installed on the left hand side of the drawer for access through a gullwing style window. The right rear deck and back right side deck each have a cut out (215mm in diameter) to fit and secure a gas/propane bottle or similar shaped object. The side decks are easily removable creating storage space between the drawers and vehicle for a variety of items such as tools, jumper cables, tow ropes, diving snorkels, masks, fins, kindling, barbeque skewers, etc. To create a removable box option, use SBOX001 or SBOX027 inside the drawers.

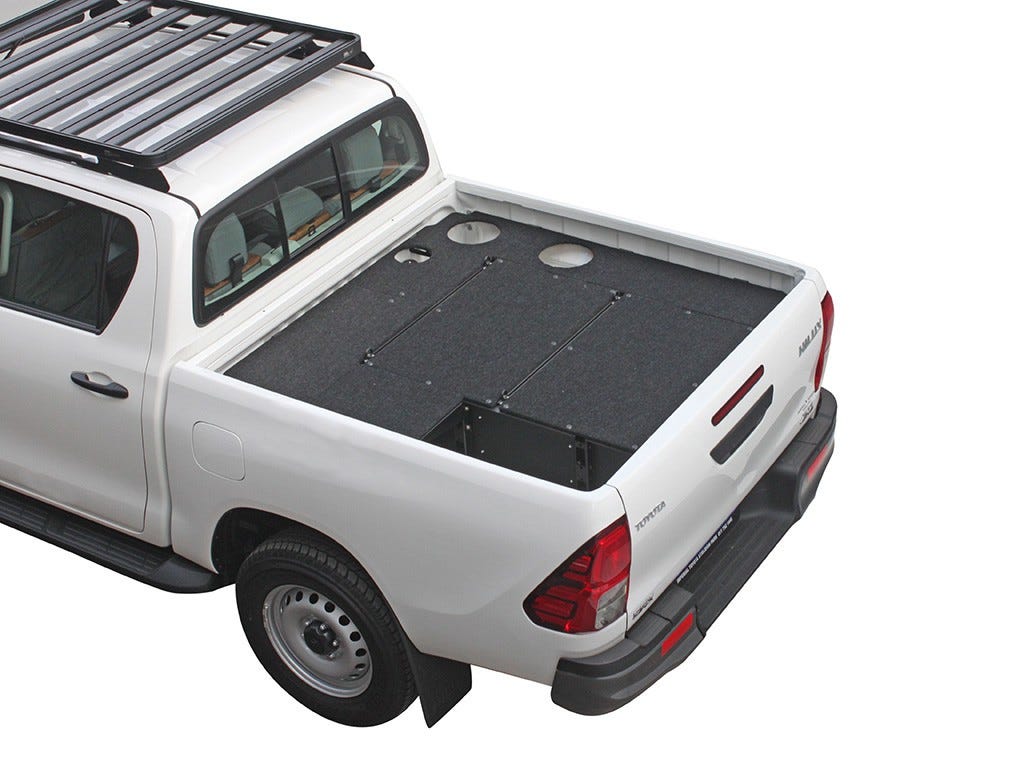

The SBOX001 or SBOX027 can be used to further organize and easily move gear in and out of a vehicle. The deck is covered with a durable, UV resistant gray marine carpet detailed to complement the vehicle’s interior contours. The nylon carpet insulates secured cargo from noise and vibration. Finished with the same durable black powder coating as Front Runner Roof Racks and other Front Runner products.

No drilling is required when fitted without lift channels and when a standard canopy is used and tailgate is left in place. If your vehicle has a canopy with a swing open door that has replaced the original tailgate, drilling 3 lifting channels (included) may be necessary.

All Front Runner Storage Systems are backed by a 2 year warranty.*Please. Note: Cub Packs and Flatpack Storage Boxes are not included when purchasing this Drawer System and are sold separately. Note: The Deck Completion Set for this drawer kit requires modification when installed with an existing plastic load liner.

Specifications

Consists of:
1 x Front Runner Drawer unit (SSDR012)
1 x Toyota Hilux Revo DC (2016-Current) Touring Deck Completion Set (SSDS108)
1 x Drawer System Wing Set (SSWS004)
1 x Push to close latch with 2 keys per lock
3 x Accessory channels
6 x Eye Nuts for accessory channels
Installation Hardware includes 4 turnbuckles to secure unit to vehicle with standard canopy Fitting Instruction

Material used:
Black powder-coated steel - Drawer Bins, Frame Front Covers Nylon Carpet Laminated Plywood - Top Deck Deck Set

Product dimensions:
Overall Dimensions:1510mm (59.5) L x 1604mm (63.2) W x 335mm (13.2) H
Drawer Internal Dimensions:1100mm (43.3) L x 747mm (29.4) W x 208mm (8.2) H
Weight: 80.5kg (177.5lbs)

Dimensions: L: 990.0mm × W: 1240.0mm × D: 690.0mm

Weight: 101.00kg
