Ultimate9 LED Light Bar 30"

Ultimate9 LED Light Bar 30"

$239.95 AUD
$239.95 AUD
Sale Sold out
Tax included.
Options:
FREE Standard Shipping Australia-Wide Included with this product.

Why you’ll love it

  • Spot-and-flood optics deliver reach and usable spread.
  • 7,135 effective lumens reach 1 lux at 582 m.
  • IP68/IP69K protection suits harsh, exposed conditions.
Specifications
  • Input voltage: 9–36V DC
  • Power: 150W
  • Current draw: 10A at 13.2V
  • Raw output: 14,280 lumens
  • Effective output: 7,135 lumens

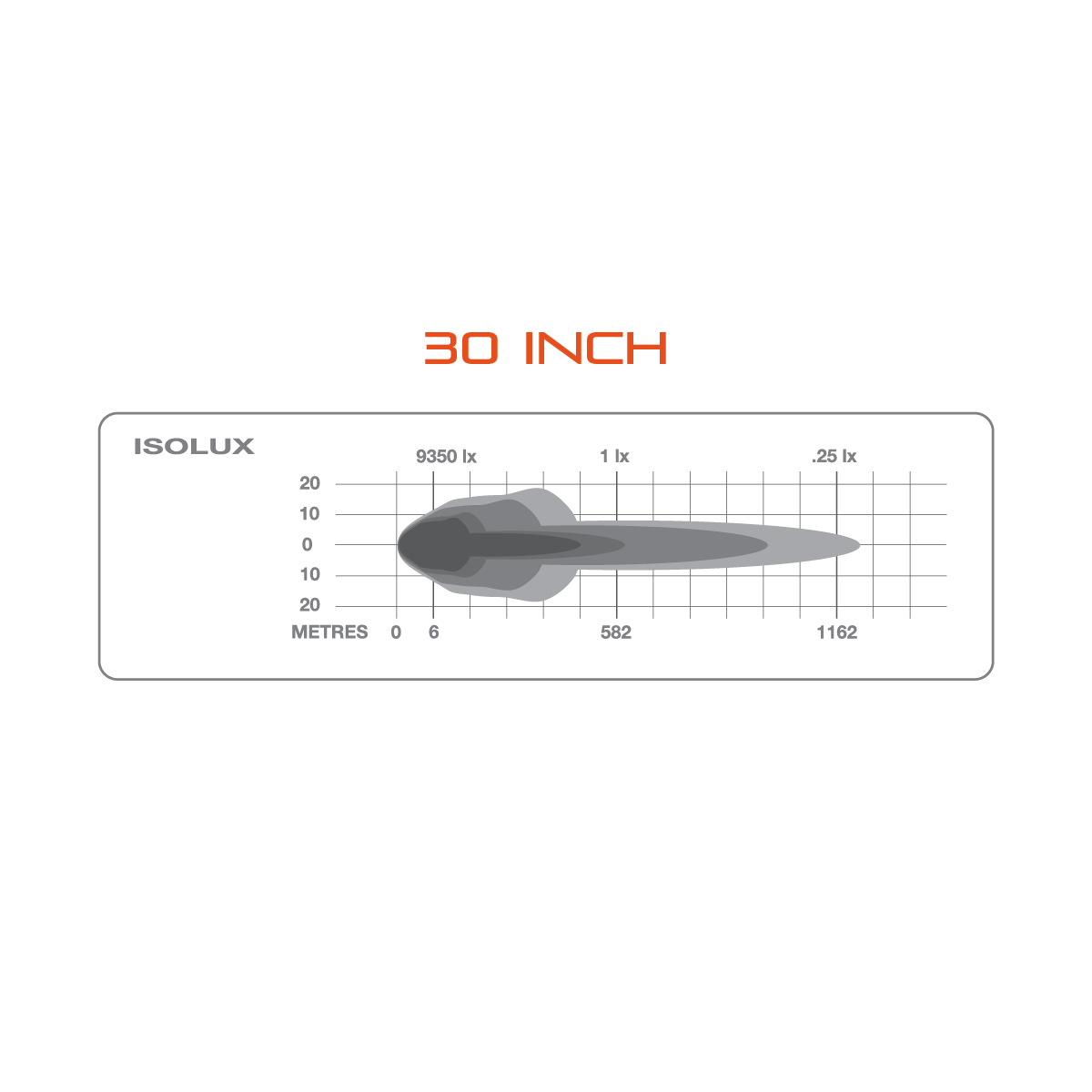

  • Beam distance: 1 lux at 582m
  • Beam pattern: Combination spot and flood
  • Beam spread: 8° spot and 20° flood
  • LED chips: Osram 5W
  • Colour temperature: 6000–6500K
  • Housing: DuPont-coated 6063 aluminium
  • Lens: GE Lexan polycarbonate
  • Ingress protection: IP68 and IP69K
  • Ventilation: Gore PolyVent
  • Connector: Sealed DT connector
  • Weight: 2.37kg
  • Body dimensions (L × H × W): 812 × 45 × 49mm
  • Lens width: 30" (811mm)
  • Operating temperature: -40°C to 145°C
  • Certifications: CE, RoHS and RCM
What’s Included

Base kit includes the LED light bar plus side-mount brackets and hardware.

A harness included when the 'With harness' variant is selected.

Installation & Guides

Use the Ultimate9 Twin Output Harness for wiring.

The appropriate harness is required for this light-bar size.
