Toyota Hilux N80 (Revo) DC (2016-Current) Load Bar Kit / Track AND Feet
Toyota Hilux N80 (Revo) DC (2016-Current) Load Bar Kit / Track AND Feet
Couldn't load pickup availability

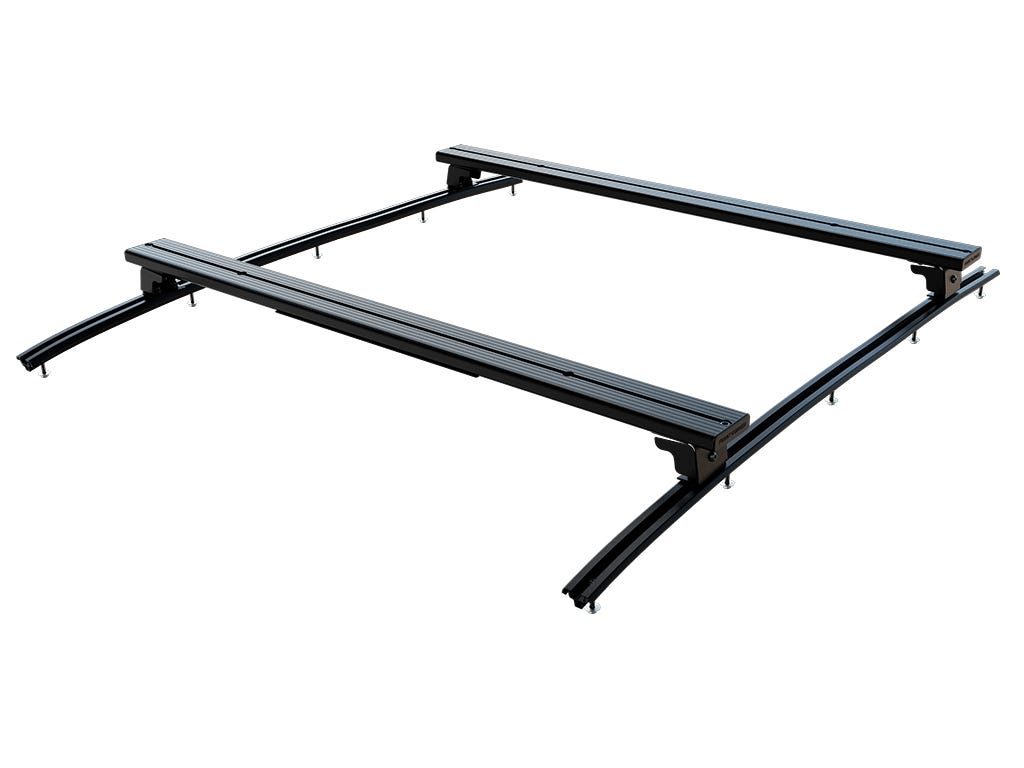

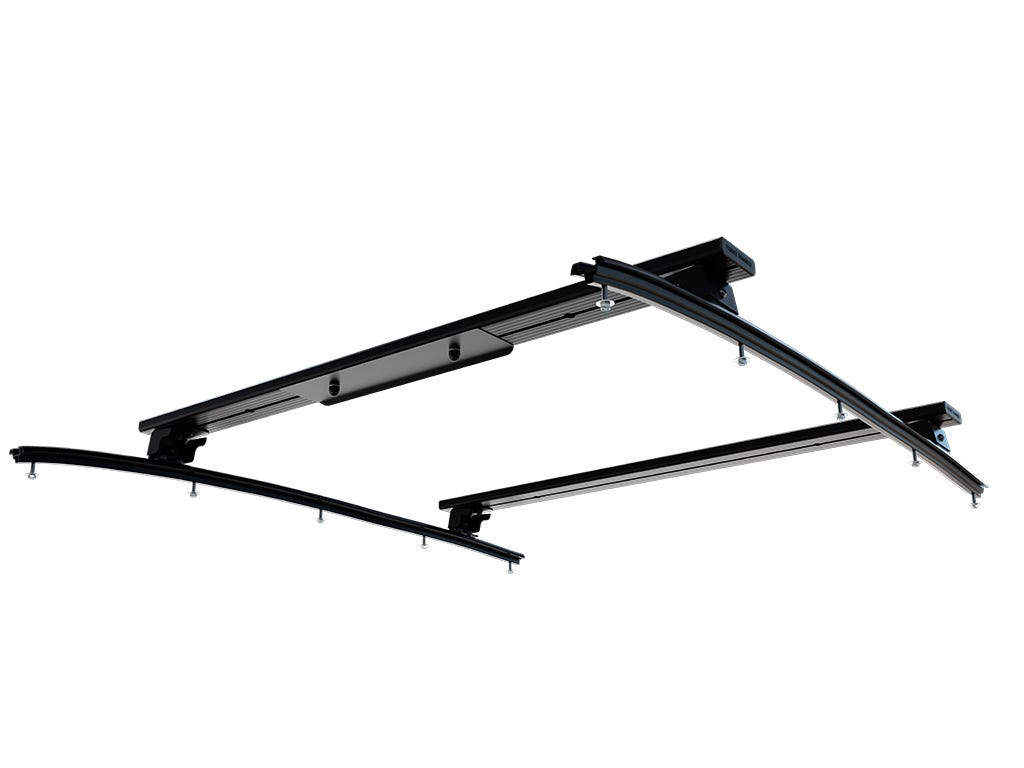

Includes wind deflector, four (4) mounting feet and two (2) 1165mm Load Bars that fit into the supplied tracks. Load Bars are mounted via mounting feet that bolt directly onto the supplied tracks. Uses the same strong, corrosion-free aluminium slats found in Front Runner racks. Sliding nut t-slots allow for quick fitting and removal of accessories and equipment on both the top and bottom of the slats.
Made from steel and durable, weather-resistant black powder-coated aluminium. Includes all hardware, components and installation guide needed to fit Load Bars on a vehicle. Note: The load per Load Bars must not exceed 55lbs or 25kg, and ensure the load is distributed evenly. For larger loads, additional Load Bars may be needed, please contact Customer Service for any enquiries.
Specifications
KRTH022 - Toyota Hilux Revo DC (2016-Current) Load Bar Kit / Track Feet - by Front Runner.
Consists of:
2 x FASS024 - Foot Set / 50mm - 60mm
1 x LBSK013 - Load Bar Pair 1165mm(W)
1 x TRTH006 - Toyota Revo DC (2016-Curr) Tracks/1300mm(L)
1 x WDLB001 - Load Bar Wind Deflector / 10mm
Material used:
Black epoxy powder-coated T6 aluminium
Approximate installed weight:
8.44kg (18.61lbs)
The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8'') to the height of the Foot, Grab-On Foot listed above.
If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8'') to the height of the Legs listed above to determine the height of the rack from your vehicle's rain gutters.
If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8'') to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicle’s roof.
Shipping dimensions:
Width: 115mm (5'')
Length: 1320mm (52'')
Height: 255mm (10'')
Shipping weight:
Weight: 7.14kg (16lbs)
Dimensions: L: 115.0mm × W: 1320.0mm × D: 255.0mm
Weight: 7.10kg
