Ultimate9 LED Work Lamp: Pedestal Mount
Ultimate9 LED Work Lamp: Pedestal Mount
Couldn't load pickup availability
Whether from a canopy, trailer, roof rack or rear bar, easily illuminate & unveil your campsites, worksites, or trails when tackling the dark.
With x4 Osram® 10W LED chips, a spot pattern reflector, and a Lexan® Polycarbonate diffused lens - the Pedestal Work Light will throw a large area of light, reaching 1 Lux at 75m.
Tested to meet the highest waterproof ratings, a 6063 grade aluminium housing and military grade breather allow wider & greater heat dissipation - improving longevity.
Better still, it's easy to mount with its single stainless steel bolt.
Features:
Water & Dust Protection: Tested to the highest IP ratings, IP68 and IP69K.
IP68 for term-long submersion and total dust ingress.
IP69K for stream jet cleaning.

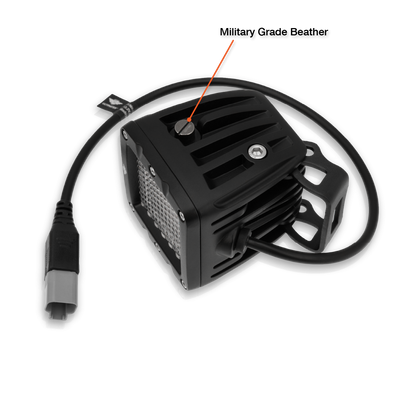

Ventilation: Military grade breather valve equalises internal pressure to prevent seal failure, moisture and dust ingress as the aluminium housing heats and cools - eliminating condensation & fogging.
Housing: Die-cast 6063 aluminium housing with 304 Stainless Steel fastener. Overlaid with a UV & corrosion resistant Dupont® coating.
Lens: GE Lexan® Polycarbonate lenses are virtually indestructible, UV, scratch and impact-resistant; they negate the need for additional protective covers.
Optics: Diffused Flood Beam Pattern.
Technology: 4x Grade A Osram 10W LED chips & sealed DT connectors.
What Harness Do I Need?
Ultimate9 Work Lamps come supplied with their own individual harness. However, when installing two Work Lamps, our Twin Output Harnesses can also be utilised
Specifications:
- Input Power: 9-36V
- Beam Pattern: Diffused Flood
- Power: 40W
- Current Draw: 2.3A @ 13.2V
- Effective Lumen: 2,957 lm

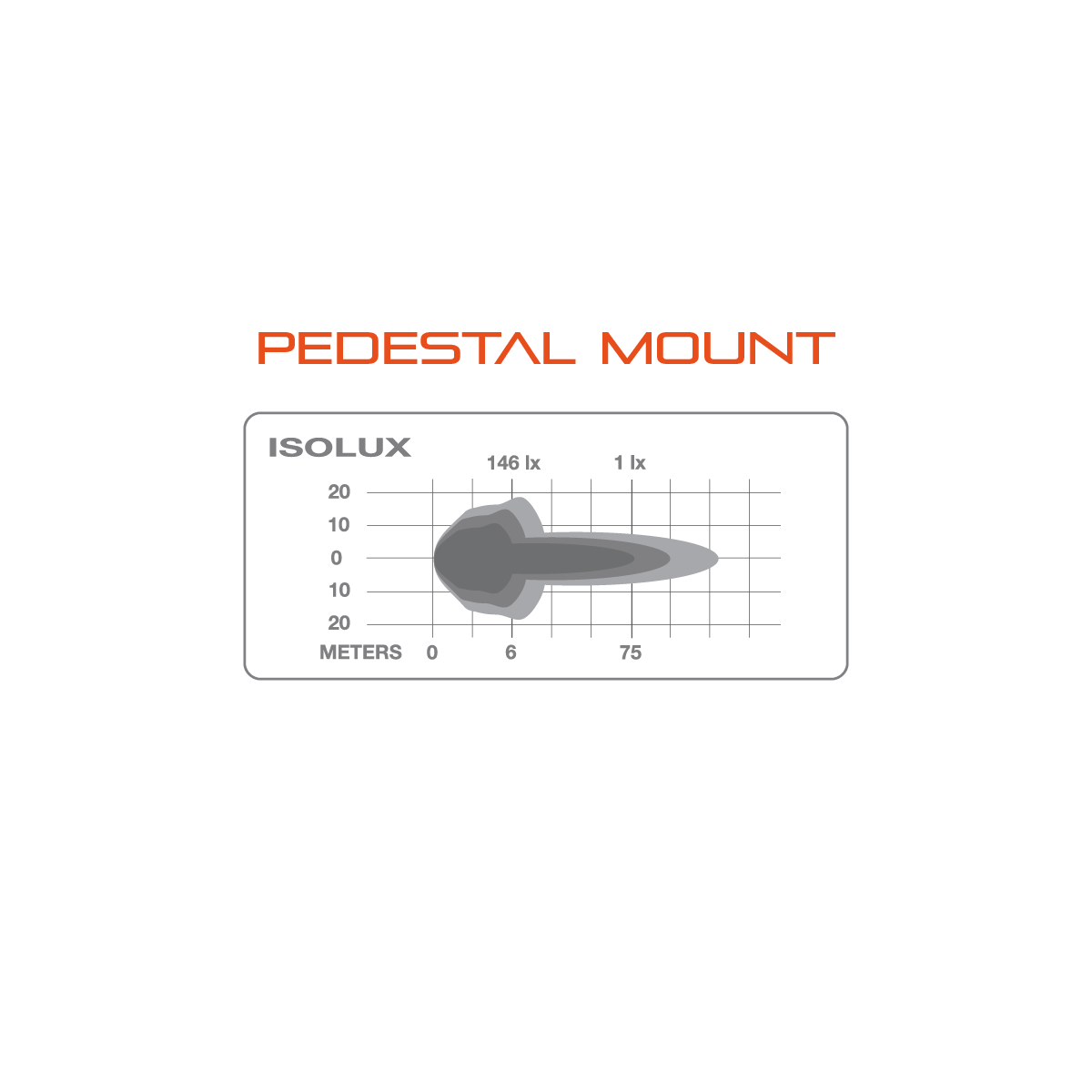

- Beam @ 1 Lux: 75m
- LED Chips: Osram 10W
- Colour Temp: 6000-6500K
- Housing Material: Die Cast 6063 Aluminium
- Housing Coating: DuPont®
- Lens Material: GE Lexan® Polycarbonate
- IP Rating: IP68 / IP69K
- Ventilation: Military Grade
- Weight: 0.9Kg, Loom - 0.25Kg
- Body Dimensions: (L)82 x (H)76 x (W)83mm
- Lens Dimensions: 2" x 2" (50 x 50mm)
- Connector Type: DT Sealed
- Operating Temp: -40ºC - 145ºC
- Certification: CE, RoHS, RCM
